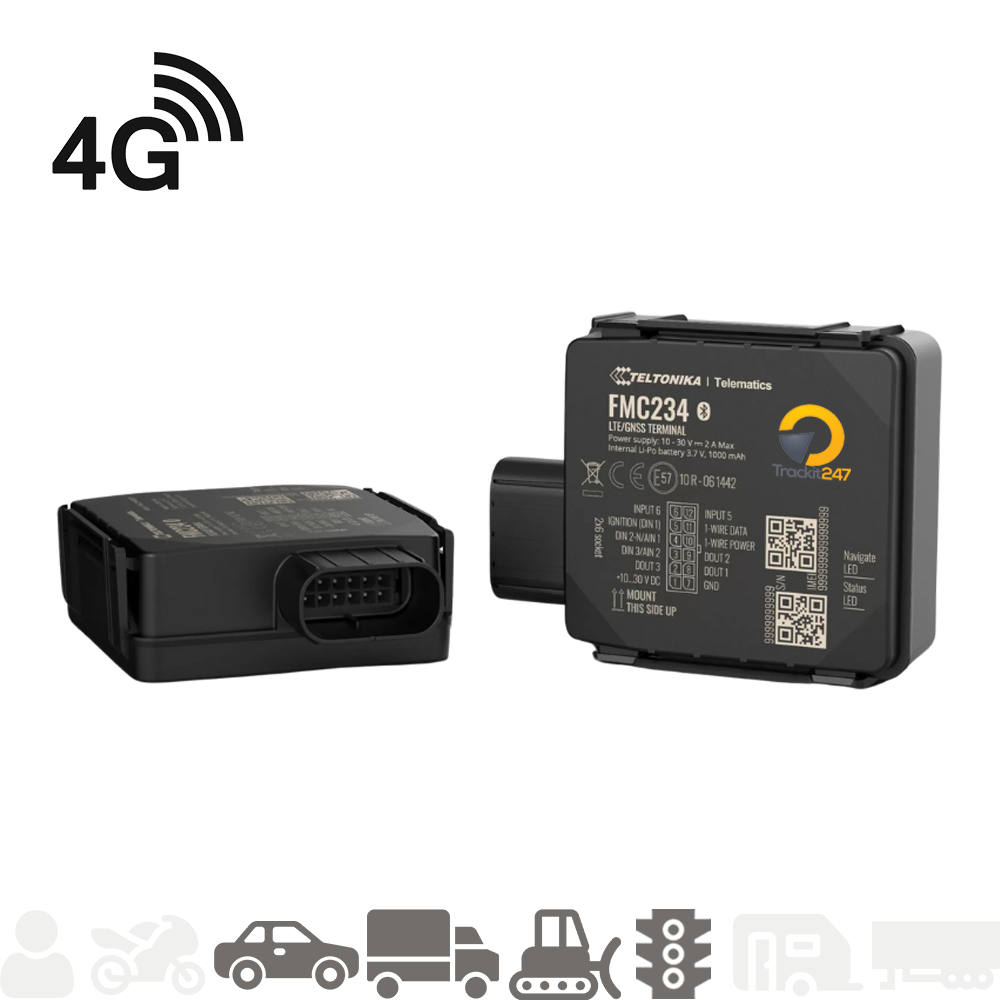

Ti-234 4G

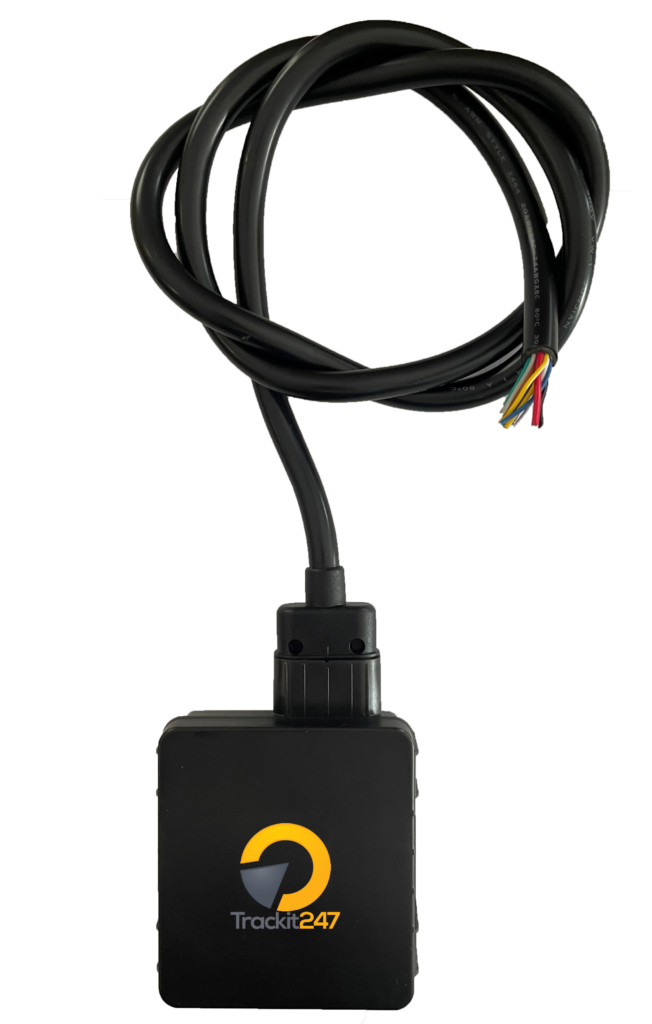

The Ti-234 4G is the 4G version of our highly successful and widely used Ti-204 model, offering the same multiple inputs and outputs to suit a variety of applications, simply connect the device to a power source to get started. This tracker can be easily installed as a standard tracking solution and also allows you to disable a vehicle from your PC or mobile device at the touch of a button.

Traffic Light Tracking

This is an IP67-rated waterproof device, making it suitable for a wide range of vehicles and other applications, giving you one less concern during installation. The Ti-234 4G displays the voltage of the battery it is connected to, allowing you to monitor the asset’s power supply.

This tracker is compatible with all types of temporary traffic lights. When connected to the red and green signals of a traffic light, it provides live status updates on the platform, indicating whether the light is red or green.

Driver ID

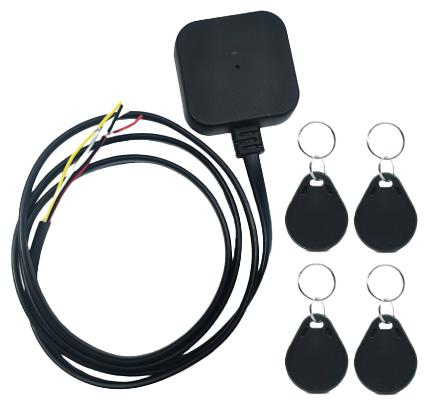

This unit can be used in conjunction with a Dallas fob reader, allowing drivers to scan their fob before operating a vehicle so the Fleet Platform can identify who is driving each vehicle.

It can also be paired with a buzzer in the cab to ensure drivers scan their fob before starting their journey. Additionally, it can be connected to an immobiliser relay, preventing the vehicle from starting unless the driver has scanned their fob first.

Specifications

• Up to 1 day internal backup battery
• Weight: 205 grams
• Size: 73 L x 73 W x 28 H mm
• IP67 Rated

Prices

Reader : £15.00 plus VAT (each)
Tags: £2.00 plus VAT (each)

**Dependant on the mobile network and SMS services. Trackit247 cannot accept responsibility for any network failure/interruption resulting in the difficulty or inability to use the remote immobilisation feature. Terms & Conditions Apply.

*All device battery life is subject to usage and age of the device and can vary from the advertised information.

Wiring:

• 1. VCC (10-30) V DC (+) Power supply (10-30 V DC).
• 2. DOUT 3 Digital output, channel
• 3. Open collector output. Max. 0,5 A DC. 3 DIN 3 / AIN 2 Analog input, channel 2. Input range: 0-30 V DC / Digital input, channel 3.
• 4. DIN 2-N / AIN 1 Digital input, channel 2, Negative input (ground sense), Analog input, channel 1, Input range: 0-30 VDC.
• 5. DIN 1 Digital input, channel 1.
• 6. INPUT 6 TX EXT (LVCAN – TX).
• 7. GND (-) Ground pin. (10-30) V DC (―)
• 8. DOUT 1 Digital output, channel 1. Open collector output. Max. 0,5 A DC.
• 9. DOUT 2 Digital output, channel 2. Open collector output. Max. 0,5 A DC.
• 10. 1 WIRE POWER +3,8 V output for 1–Wire devices.
• 11. 1 WIRE DATA Data for 1–Wire devices.
• 12. INPUT 5 RX EXT (LVCAN – RX).
