Ti-100

£60.00 inc VAT

Current Month FREE
  • Simple installation
  • Versatile device
  • IP65 Rated
  • Select a tracking panel option

    Select a tracking panel subscription

    • 10 £
    • 60 £
    • 120 £
    • 12 £
    • 72 £
    • 144 £
    • £

Discover why this product is great for...

Several cars vans trucks parked in parking lot for rent or delivery, with gps vehicle tracking
Car & Van Tracking
Live GPS Plant Tracking
Plant & Machinery
Live GPS Traffic Light Tracking
Traffic Light Tracking
GPS Trailer Tracking
Caravan Tracking

Description

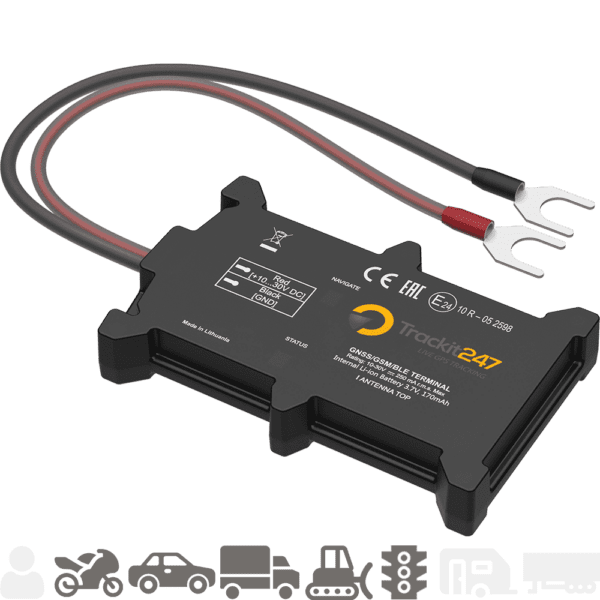

A 2 wire GPS tracking device solution which means fast and simple installation with no need for a separate hardwire charger. This tracker requires a simple installation with just the connection of two cables straight to the terminals of a 12v or 24v battery or any permanent live feed of the asset. This low cost solution is a very versatile device, and can be hidden away and installed in covert locations due to its size. The Ti-100 also has an IP65 rated case, allowing it to withstand water immersion up to 1 metre. This is great for plant machinery which undergoes heavy usage, enabling the tracker to continue doing its job without interruption. The Ti-100 displays the voltage of the battery it is connected to, which allows you to monitor the voltage of the asset. You will also be alerted if the tracker is disconnected from power.

Specifications

  • Up to 1-2 hours internal backup battery
  • Weight: 63 grams
  • Size: 93mm x 58mm x 14mm

All device battery life is subject to usage and age of the device and can vary from the advertised information.

Additional information

Software Compatibility

ASSET, FLEET

Cellular Technology

2G GSM

GNSS

GPS, GLONASS, GALILEO, BEIDOU

Input Voltage Range

10 – 30v DC

Internal Battery

170 mAh Up to 2-3 hours

Power Consumption

At 12V < 4 mA (Online Sleep)
At 12V < 6 mA (GPS Sleep)
At 12V < 25 mA (Nominal)

Inputs

NO

Outputs

NO

Driver ID Support

NO

Waterproof

IP65

Weight

63 grams

Size

93 x 58 x 14mm



Please find our mobile apps user guide which gives you all the information you need to download and use the Android and iPhone mobile phone apps.

To open the file please click on the download button below.

Should you have any other questions regarding the mobile apps then please contact us.

Download App Guide



Apple App StoreApple App Store    Google Play Store Apple App Store

  • Connect the red and black cables to a 12/24v battery to power up the unit
  • Place the device close to a window or outside to gain initial GPS connection
  • Login to control panel and check that the date, time and location are correct
  • Once control panel shows correct information, disconnect tracker from battery
  • Connect red and black cables to a PERMANENT live 12/24v feed of vehicle or asset
  • DO NOT PLACE DEVICE UNDER METAL OR A LOCATION OBSTRUCTED BY METAL
  • Check control panel shows correct time and information again
  • Secure all connections and the tracking device to the vehicle or asset
